Human-centric lighting dynamically adjusts color temperature and intensity throughout the day. It syncs with occupant circadian rhythms to boost productivity and wellness. For B2B buyers, specifying tunable white fixtures is now essential for commercial projects.
What Is Human-Centric Lighting?
Human-centric lighting (HCL) shifts color temperature and brightness to mirror natural daylight. Modern humans spend roughly 90% of their time indoors. This disconnect disrupts circadian rhythms and reduces cognitive performance.
HCL systems use tunable white LED fixtures with dual-channel drivers. They mix warm and cool diodes in real time. This creates dynamic color shifts across the working day.
A proper lighting design guide helps align fixture specs with project needs. The goal is indoor lighting that supports human biology. Static fixtures can no longer meet wellness building standards.
HCL systems also reduce total energy consumption despite wider tuning ranges. Automated schedules dim fixtures to 10-40% in evening hours. This often results in lower daily kWh than static fixtures at 100%.
The Science Behind Circadian Lighting
Specialized cells in the human eye contain melanopsin, a light-sensitive pigment. These ipRGC cells respond to blue wavelengths around 480nm. They trigger cortisol for alertness or melatonin for sleep.
A 2024 study in the Journal of Environmental Psychology found significant gains. Workers under dynamic circadian lighting completed tasks 18% faster. They also made 24% fewer errors than under static lighting.
Research on 480nm-heavy spectra showed additional workplace benefits. Employees reported a 12% increase in cognitive performance. Self-reported fatigue dropped by 18% during afternoon hours.
These results explain why developers now demand HCL in commercial buildings. Buyers should model long-term performance using LED lifespan metrics. Circadian fixtures must maintain output over 50,000 hours.
Tunable White Specs for B2B Procurement
Specifying tunable white fixtures requires precise technical parameters. Corporate offices typically need a 2700K to 6500K tuning range. Hospitality spaces use 1800K to 4000K for warmer transitions.
High-performance HCL fixtures must maintain CRI 95+ across the full range. R9 saturated red values should exceed 50 for skin tone accuracy. See our lumens to watts conversion guide for efficiency benchmarks.
Glare control is equally critical for workplace comfort. The Unified Glare Rating must stay below 19 at all workstations. Flicker metrics should meet SVM thresholds of 0.4 or lower.
Color consistency matters across the entire tuning range. Specify MacAdam 3 SDCM or tighter binning for uniformity. Cheap tunable solutions shift into green tints during transitions between settings.
| Parameter | HCL Specification | Why It Matters |
|---|---|---|
| Tuning range | 2700K-6500K (corporate) | Covers full circadian cycle |
| CRI | ≥95 across range | Color accuracy at all CCTs |
| R9 | >50 | Saturated red rendering |
| UGR | <19 | Prevents workplace glare |
| Flicker (SVM) | ≤0.4 | Reduces eye strain |
| Standby power | ≤0.5W | EU ERP compliance |
WELL and LEED Certification Requirements

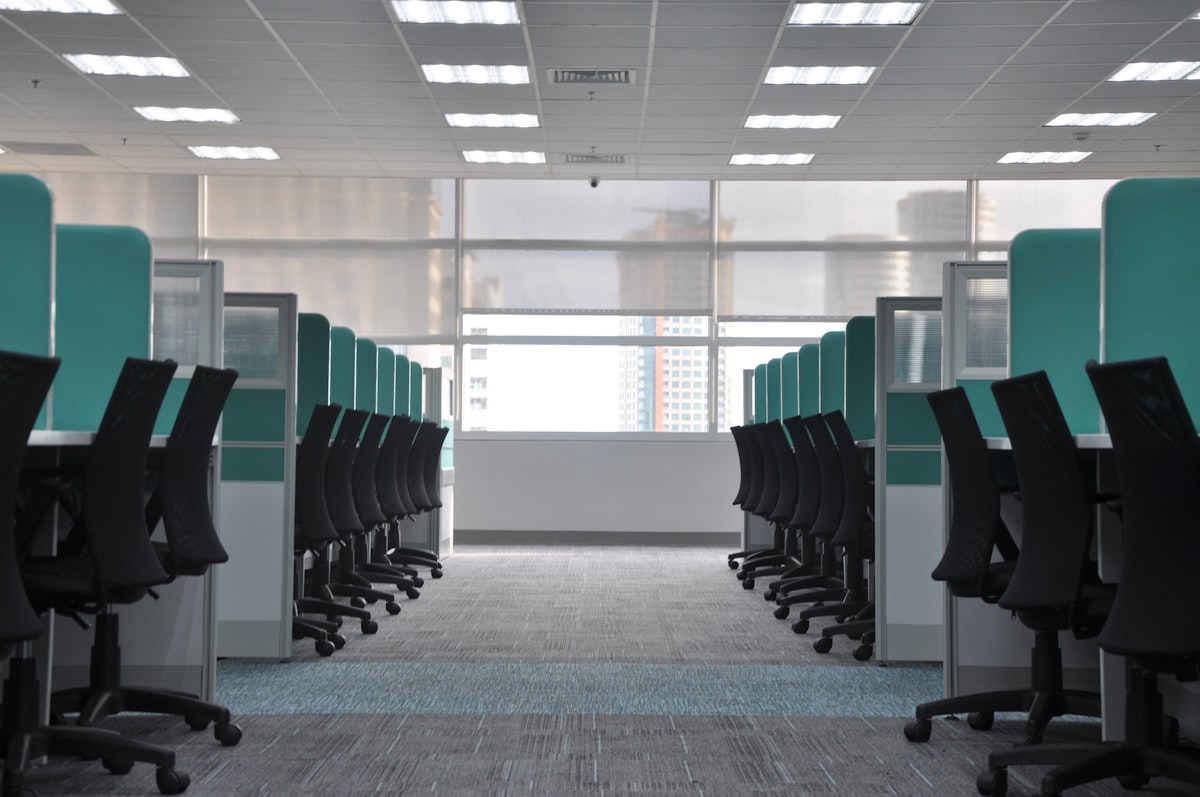

Wellness building certifications now drive HCL adoption in commercial projects. The WELL Building Standard v2 Feature L03 sets circadian requirements. At least 75% of workstations must receive 200 equivalent melanopic lux.
WELL v2 Feature L02 requires visual lighting design to EN 12464-1. UGR must remain below 19 at all work positions. These metrics are measured on the vertical plane at seated eye height.
A Grade A office tower in Shenzhen implemented HCL in March 2026. The project required LEED compliance and tunable white throughout. Similar retail lighting design principles apply to commercial spaces.
Procurement managers should verify WELL and LEED requirements early. These standards directly impact fixture specifications and budgets. Non-compliant products face rejection in certified building projects.
Control Protocols for HCL Systems
Tunable white fixtures require intelligent control systems. Standard dimmers cannot shift color temperature. They only regulate brightness intensity on a single channel.
DALI-2 provides granular digital control for commercial HCL installations. Each fixture receives a unique address for individual programming. For emergency integration, review LED emergency lighting standards.
Dual-channel 0-10V control offers a cost-effective alternative. It routes separate circuits for dimming and color temperature. Wireless protocols like Matter over Thread eliminate secondary wiring entirely.
Casambi Bluetooth Mesh offers another wireless option for retrofits. It embeds mesh chips directly in LED drivers. Fixtures communicate peer-to-peer without central controllers or secondary wiring.
The EU EPBD now mandates interoperable protocols for new commercial buildings. DALI-2, KNX, and Matter are explicitly referenced in frameworks. Protocol selection directly impacts project compliance and maintainability.
Action Steps for HCL Project Specification
Follow these steps to specify HCL for commercial projects:
- Define the application space. Offices, healthcare, and education have distinct circadian needs.
- Specify the tuning range. Match CCT range to building type and occupant schedule.
- Require CRI 95+ and R9 above 50. Request test data across the full tuning range.
- Select a control protocol. DALI-2 for large installations, Matter for wireless retrofits.
- Calculate project ROI using our ROI calculator to model energy savings.
- Verify WELL or LEED requirements. Confirm m-EDI targets before finalizing fixture counts.
- Compare technology options using our LED comparison tool for efficiency.
For industrial applications, the industrial lighting ROI calculator provides facility-specific returns. HCL retrofits typically pay back within three years.
Frequently Asked Questions
Human-centric lighting (HCL) is an architectural lighting approach that dynamically adjusts color temperature and intensity throughout the day. It uses tunable white LED fixtures to sync indoor lighting with natural circadian rhythms, boosting daytime alertness and supporting evening melatonin production.
Corporate offices typically need 2700K to 6500K to cover the full circadian cycle. Hospitality spaces use 1800K to 4000K for warmer evening transitions. The range should span from cool daytime alertness to warm evening relaxation.
No. While warm settings reduce efficacy by 10-15%, HCL systems automatically dim fixtures to 10-40% in afternoon and evening hours. Total daily energy consumption is often lower than static fixtures running at 100% capacity throughout the day.
Need help specifying tunable white fixtures for your project?
Use our free professional lighting calculators to verify fixture counts, ROI, and LED lifespan before you source.
What to Do Next
Human-centric lighting is no longer a premium upgrade. It is becoming a baseline requirement for commercial buildings. WELL and LEED certifications now embed circadian lighting into their core frameworks.
B2B buyers who specify HCL correctly gain competitive advantages. They deliver healthier spaces that command higher lease rates. They also reduce energy costs through automated dimming schedules.
Start by auditing your current fixture specifications. Then verify tunable white ranges and control protocol compatibility. Missing these details triggers costly project delays.
