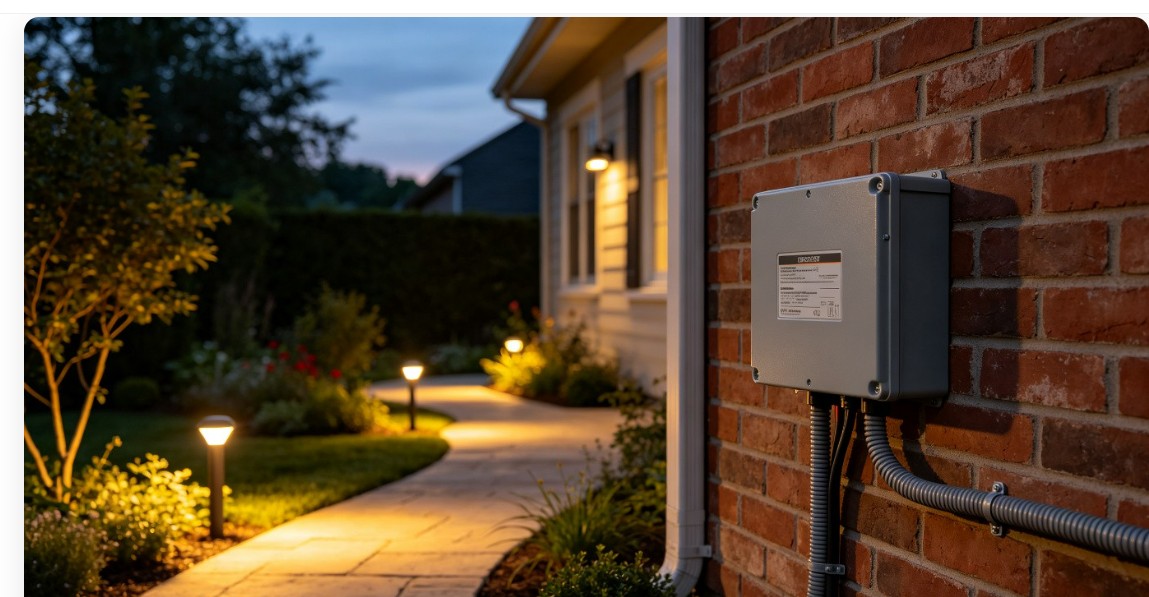

Low Voltage Transformer Calculator
What size transformer do you need for low voltage landscape lighting? This calculator adds up your fixture wattage, applies the 20% headroom rule, and checks voltage drop on your wire run. Enter fixture count, watts per fixture, and wire length to get a transformer size recommendation in seconds. Works for all low voltage outdoor lighting systems. Ask us about low voltage outdoor lighting transformers for your project.
Related Calculators
Size Your Transformer
Enter your fixture details below. The calculator updates results in real time as you type.
System Overview
Transformer Sizing Formula
The math behind the calculator, so you can verify the numbers yourself. Every formula here follows NEC Article 411 requirements for low voltage landscape lighting. Low voltage means 30V AC or less, typically 12V or 24V, which is safe to handle and requires no conduit for buried cable.
Step 1: Total Load
For 10 low voltage lighting fixtures at 7W each: 10 × 7 = 70W.
Step 2: Add 20% Headroom
70W × 1.2 = 84W. Pick the next standard size up, which is 100W. The 20% margin prevents overheating and leaves room for future fixture additions.
Step 3: Calculate Voltage Drop
Where Current = Total Watts ÷ System Voltage, and R is the resistance of copper wire per 1000 feet.
- 18 AWG: 6.51 Ω/1000ft, max 25W at 12V
- 16 AWG: 4.02 Ω/1000ft, max 50W at 12V
- 14 AWG: 2.53 Ω/1000ft, max 100W at 12V
- 12 AWG: 1.59 Ω/1000ft, max 150W at 12V
- 10 AWG: 0.998 Ω/1000ft, max 250W at 12V
Step 4: Check Voltage at Farthest Fixture
LED fixtures need at least 10.8V on a 12V system (90% of rated voltage) to operate correctly. Below that, LEDs flicker or fail to start. On a 24V system, the minimum is 21.6V.
Magnetic vs Electronic Transformers
Two technologies, different tradeoffs. Pick based on your installation.
| Feature | Magnetic (Core & Coil) | Electronic (Solid State) |
|---|---|---|
| Lifespan | 15 to 20 years | 5 to 8 years |
| Weight | Heavy (5 to 15 lbs for 300W) | Light (1 to 3 lbs for 300W) |
| Cost | Higher upfront ($80 to $200) | Lower upfront ($30 to $80) |
| Dimming | Compatible with most dimmers | Needs specific electronic low voltage dimmers |
| Heat & Noise | Runs warm, slight hum | Runs cool, silent |
| Minimum Load | No minimum, handles 0 to 100% | Needs 20 to 30W minimum load |
| Best For | Permanent installations, long wire runs, low voltage switchgear | Small installs and tight spaces |
Three Costly Mistakes
Data from 200+ landscape lighting installations shows these errors cause 80% of system failures. The number one culprit is overloading the transformer, followed by undersized wire and poor layout.
No Headroom
Loading a transformer to 100% of its rating causes overheating. The internal breaker trips on hot summer nights, and the transformer lifespan drops from 15 years to 3.
Undersized Wire
Using 16 AWG low voltage wire on a 100-foot run at 12V causes a 2.4V drop. Fixtures at the end of the line receive only 9.6V and flicker or produce dim, yellow light.
Hub Wiring
Daisy-chaining low voltage lights puts the farthest fixture at the lowest voltage. A hub or T-junction layout keeps wire runs shorter and voltage more uniform across all fixtures.
Low Voltage Wire Gauge Selection Chart
Match your total wattage and wire run distance to the right AWG. Copper low voltage wire costs about $0.30 per foot for 14 AWG and $0.50 per foot for 12 AWG at most hardware stores. Use low voltage wire connectors or wire nuts rated for outdoor burial to join cable sections.
| Wire Gauge | Max Load at 12V | Max Load at 24V | Recommended Max Run | Resistance |
|---|---|---|---|---|
| 18 AWG | 25W | 50W | 25 ft / 7.6 m | 6.51 Ω/1000ft |
| 16 AWG | 50W | 100W | 40 ft / 12 m | 4.02 Ω/1000ft |
| 14 AWG | 100W | 200W | 60 ft / 18 m | 2.53 Ω/1000ft |
| 12 AWG | 150W | 300W | 100 ft / 30 m | 1.59 Ω/1000ft |
| 10 AWG | 250W | 500W | 150 ft / 46 m | 0.998 Ω/1000ft |
| 8 AWG | 400W | 800W | 200 ft / 61 m | 0.628 Ω/1000ft |
Transformer Sizing FAQ
What size transformer do I need?
Add up the wattage of all fixtures on the circuit, then multiply by 1.2 to leave 20% headroom. For example, 10 fixtures at 7W each draw 70W total, so you need a transformer rated for at least 84W. The closest standard size is 100W. Never load a transformer past 80% of its rated capacity. Standard transformer sizes are 45W, 60W, 75W, 100W, 120W, 150W, 200W, 250W, 300W, 400W, 500W, and 600W.
12V or 24V for landscape lighting?
12V is the standard for residential low voltage lighting and works with most path lights and spot lights. The 12V system classifies as extra low voltage under IEC standards, meaning it poses no shock hazard in wet locations. 24V is better for long wire runs over 50 feet because it halves the current, which reduces voltage drop by 50% compared to 12V at the same wattage. Most home fixtures are 12V, so only choose 24V if your run exceeds 50 feet and you can source 24V fixtures.
How do I calculate voltage drop?
Voltage drop equals 2 times wire length times current times wire resistance per foot, divided by 1000. Current equals total wattage divided by system voltage. For a 70W load at 12V on 100 feet of 14 AWG wire, the drop is 2 times 100 times 5.83 times 2.53 divided by 1000, which equals 2.95V. That leaves only 9.05V at the farthest fixture, below the 10.8V minimum for proper LED operation.
What wire gauge for landscape lighting?
Use 12 AWG for runs over 50 feet or loads above 100W. Use 14 AWG for runs under 50 feet with loads up to 100W. Use 16 AWG only for short runs under 25 feet with loads under 50W. Voltage drop should stay under 5% of system voltage, meaning no more than 0.6V drop at 12V or 1.2V drop at 24V.
Can I mix different wattage fixtures?
Yes, as long as the total wattage stays under 80% of the transformer rating. Mix path lights and spot lights freely. The transformer only cares about total load, not whether you use integrated fixtures or replaceable low voltage bulbs. Fixtures farther from the transformer will receive lower voltage due to wire resistance, so place higher-wattage fixtures closer to the transformer when possible.
What if my transformer is too small?
An overloaded low voltage transformer runs hotter, shortens its lifespan, and may trip its internal breaker. LEDs connected to an overloaded transformer will flicker or fail to start. If your transformer feels hot to the touch after 30 minutes of operation, it is running above 80% capacity and you need a larger unit.
